Frustum

The Frustum component visualizes camera frustums in 3D space. This is ideal for:

  • Visualizing camera field of view
  • Debugging camera placements
  • Displaying camera trajectories
  • Creating multi-camera visualization setups

Basic Usage

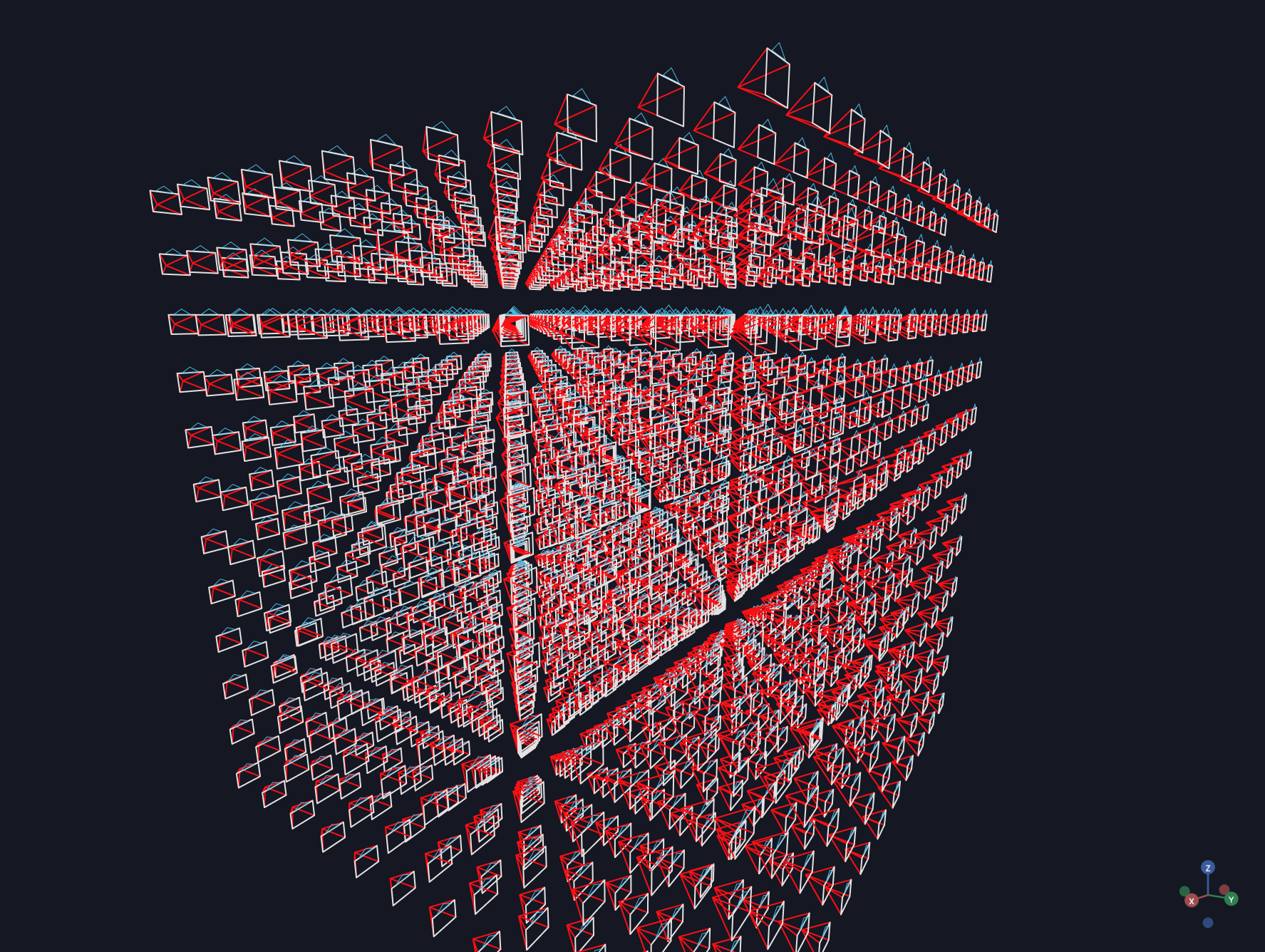

A minimal example that creates a camera frustum:

from vuer import Vuer, VuerSession
from vuer.schemas import DefaultScene, Frustum, OrbitControls

n, N = 12, 12**3

app = Vuer()

@app.spawn(start=True)
async def main(sess: VuerSession):
    sess.set @ DefaultScene(
        *[
            Frustum(
                key=f"frustum-{i}",
                scale=10,
                showImagePlane=True,
                showFrustum=False,
                showFocalPlane=False,
                position=[i % n, (i // n) % n, (i // n**2) % n],
                rotation=[0.5 * 3.14, 0, 0],
            )
            for i in range(N)
        ],
        up=[0, 0, 1],
        bgChildren=[
            OrbitControls(key="OrbitControls")
        ],
    )

    await sess.forever()

Key Parameters

Parameter Type Description
key str Unique identifier for the frustum
position tuple[float, float, float] Position of the frustum in 3D space
rotation tuple[float, float, float] Rotation of the frustum (Euler angles)
matrix tuple[float, ...] 16-element transformation matrix (overrides position and rotation)
aspect float Aspect ratio (width/height) of the camera
focus float Focus distance
fov float Vertical field of view in degrees
near float Near clipping plane distance
far float Far clipping plane distance
scale float Scale factor for the frustum visualization
upScale float Scale factor for the up direction indicator
focalLength float Focal length of the camera
showUp bool Whether to show the up direction indicator
showFrustum bool Whether to show the frustum wireframe
showFocalPlane bool Whether to show the focal plane
showImagePlane bool Whether to show the image plane
src str Source image to display on the image plane
colorOrigin ColorRepresentation Color of the camera origin marker
colorFrustum ColorRepresentation Color of the frustum wireframe
colorCone ColorRepresentation Color of the cone
colorFocalPlane ColorRepresentation Color of the focal plane
colorUp ColorRepresentation Color of the up direction indicator
colorTarget ColorRepresentation Color of the target marker
colorCross ColorRepresentation Color of the cross marker
